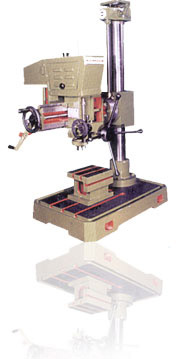

Radial Drilling Machine
RDH/325

Radial Drilling Machine
RDH/A/325 Auto Feed
 Specification
(All Dimensions are in mm)
Model RDH/325 RDH/A/325
Drilling capacity in steel   25   30
Morse taper in spindle   3   3
Spindle traverse   140   140
Feed   Hand   Auto Feed
No.of auto feeds   --   3
Range of power feeds (mm/rev)   --   0.1 - 0.2 - 0.3
No.of spindle speeds   10   10
Range of spindle speeds (rpm)   100-142-210-310-450
  600-852-1260-1860-2700
  100-142-210-310-450
  600-852-1260-1860-2700
Power of the spindle drive motor   1HP 1425 rpm
  415V AC, 3Ph 50 Hz
  1.5kw / 2HP 1440 rpm
  415V AC, 3Ph 50 Hz
Drilling Radius Max. / Min.   775/265   770/580
Diameter of pillar (Material - Cast lron)   140   180
Distance between spindle Nose and base Max./Min.   835/310   1065/500
Distance between base and circular table   315   315
Table Working surface   330 dia.   335 dia.
Base Working surface   750x530   750x490
power of lifting motor   -- 0.75kw 1HP 2860 rpm
415 AC, 3Ph 50 Hz
No. of 'T' Slots   3   3
Centre Distance between 'T' Slots   200   200
Space Occupied (LxBxH)   1170x660x1670   1350x660x2080
Net Weight   600Kg   850Kg
Note : Tapping arrangement optiional
