DRILLING MACHINE
BDM/GT
DRILLING MACHINE
BDM/HD
DRILLING MACHINE
BDM/MD & BDM/LD
Specification
(All Dimensions are in mm)
Model
Bench
BDM/GT
Bench
BDM/HD
Bench
BDM/MD
Bench
BDM/LD
Drilling capacity in steel
20
20
13
13
Tapping capacity in steel
M 12
--
--
--
Morse taper in spindle
2
2
1
J6 Arbor type
Spindle traverse
125
125
100
100
Vertical adjustment of spindle head
425
425
425
425
pillar diameter
76.2
76.2
57.15
57.15
Distance between centre of spindle and column Front
200
200
149
149
Max. distance between spindle and table
300
300
300
300
Max. distance between spindle and base
600
600
500
500
Table Working surface
370 dia.
(With coolant gutter )
370 dia.
(With coolant gutter )
200x200.
(With coolant gutter )
200x200.
(With coolant gutter )
Base Working surface
385x375
385x375
180x210
180x210
No.of spindle speeds
10
5
4
4
Range of spindle speeds (rpm)
100-142-210-310-450-600 852-1260-1860-2700
370-700-1170-1900-3220
480-820-1320-2080
480-720-1080-1590
Feed
Hand
Hand
Hand
Hand
Power of the spindle drive motor
0.75kw/1Hp 1400 rpm 415V AC, 3ph 50 Hz
0.75kw/1Hp 1400 rpm 415V AC, 3ph 50 Hz
0.37kw/0.5Hp 1425 rpm 415V AC, 3ph 50 Hz
0.37kw/0.5Hp 1425 rpm 415V AC, 3ph 50 Hz
Space Occupied(LxBxH)
790x440x1370
790x440x1250
550x340x1100
650x340x1100
New Weight
220kg
210kg
105kg
105kg
Note :
Pedestal models are also available. Machines can also be supplied in Gang version.

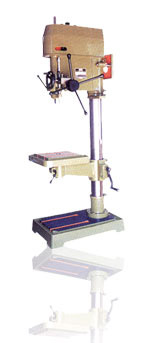

DRILLING MACHINE
P2 / 25 / GT
DRILLING MACHINE
P2 / 25 / GTA AUTO FEED

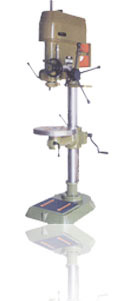

DRILLING MACHINE
P4 / 38 AUTO FEED
Specification
(All Dimensions are in mm)
Model
P2/25
P2/25/GT
P2/25/GTA
P4/38
Drilling capacity in steel
25
25
25
38
Tapping capacity in steel
-
M16
M16
M22
Morse taper in spindle
3
3
3
4
Spindle traverse
140
140
140
178
pillar diameter
120
120
120
139.7
Distance between centre of spindle and column Front
260
260
260
311
Max. distance between spindle and table
610
610
610
555
Max. distance between spindle and base
1080
1080
1080
1000
Table Working surface
335 dia.
335 dia.
335 dia.
370 dia.
Table Working surface (Manual)
470
470
485
465
Base Working surface
318x300
318x300
318x300
370x330
No.of spindle speeds
5
10
10
5
Range of spindle speeds (rpm)
400-520-675-880-1142
100-142-210-310-450
600-852-1260-1860-2700
100-142-210-310-450
600-852-1260-1860-2700
170-250-360-490-680
Feed
Hand
Hand
Auto Feed
Auto Feed
No. of power feeds
--
--
3
3
Range of power feeds (mm/rev)
--
--
0.1 - 0.2 - 0.3
0.095 - 0.190 - 0.285
Power of the spindle drive motor
0.75kw/1Hp 1400 rpm 415V AC, 3ph 50 Hz
0.75kw/1Hp 1400 rpm 415V AC, 3ph 50 Hz
0.5kw/2Hp 1400 rpm 415V AC, 3ph 50 Hz
0.5kw/2Hp 1400 rpm 415V AC, 3ph 50 Hz
Space Occupied(LxBxH)
850x600x1875
850x600x1975
850x600x2080
1100x640x2200
New Weight
360kg
420kg
610kg
850kg
Note :
Machines can also be supplied in Gang version. Tapping arrangement optional.
