  Vertical Machining Center





Lathes

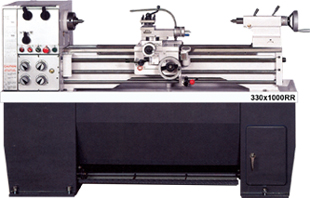

  High Speed Precision Lathe (330RR Series )


High Speed Precision Lathe (330RR Series )

MODEL
330X63ORR
330X1000RH
  Swing over bed
330mm
330mm
  Swing over cross slide
198mm
198mm
  Swing in gap diameter
476mm (optional)
476mm (optional)
  Swing in Length
210mm (optional)
210mm (optional)
  Center height
166mm
166mm
  Admit between center
630mm
1000mm
  Bed Width
187mm
187mm
  Bed Length
1248mm
1655mm
  Spindle bore
38mm
38mm
  Main Motor
1/8 HP, 3 PH
1/8 Hp, 3 PH

For more
Please feel free to Contact Us

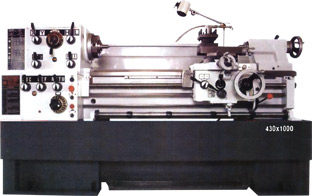

High Speed Precision Lathe (430, 530 Series)

High Speed Precision Lathe (430, 530 Series)

Series
430
530
Model
430x750
430x1000
430x1500
530x750
530x1000
530x1500
Swing over bed
430mm
430mm
430mm
530mm
530mm
530mm
Swing over Cross Slide
244mm
244mm
244mm
344mm
344mm
344mm
Swing in GAP (DxW)
660x240
660x240
66x240
760x240
760x240
760x240
Hight of Center
215mm
215mm
215mm
265mm
265mm
265mm
Distance Between Centers
750mm
1000mm
1500mm
750mm
1000mm
1500mm
Width of bed
300mm
300mm
300mm
300mm
300mm
300mm
Spindle bore
058mm
058mm
058mm
058mm
058mm
058mm
Spindle drive motor 4P, 3PH
5HP
5HP
7.5HP
7.5HP
7.5HP
7.5HP
Coolant pump motor 2P, 3PH
1/8HP
1/8HP
1/8HP
1/8HP
1/8HP
1/8HP

For More
Please feel free to Contact Us

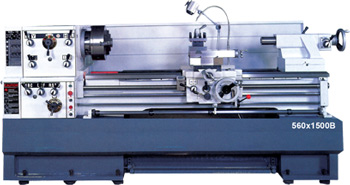

Heavy Duty Precision Lathe

Heavy Duty Precision Lathe


Series
460B
560B
Model
460x2000B
460x2000B
560x1500B
560x1500B
Swing over bed
460mm
460mm
560mm
560mm
Swing over Cross Slide
259mm
259mm
359mm
359mm
Swing in GAP (DxW)
695mmx218mm(D1-8)/
695x240m (A1-8)
795mmx218mm(D1-8)/
695x240m (A1-8)
Hight of Center
230mm
230mm
280mm
280mm
Distance Between Centers
1515mm
2015mm
1515mm
2015mm
Width of bed
400mm
400mm
400mm
400mm
Spindle drive motor 4P, 3PH
7.5HP
7.5HP
7.5HP
7.5HP
Coolant pump motor 2P, 3PH
1/8HP(O.1 kw)
1/8HP(O.1 kw)
1/8HP(O.1 kw)
1/8HP(O.1 kw)

SERIES
560C
660C
760C
Model
560x1500C
560x2000C
560x3000C
660x1500C
660x2000C
660x3000C
760x1500C
760x2000C
760x3000C
Swing over bed
560mm
560mm
560mm
660mm
660mm
660mm
760mm
760mm
760mm
Swing over cross slide
336mm
336mm
336mm
436mm
436mm
436mm
536mm
536mm
536mm
Swing in GAP (DxW)
780 x 255 mm (Al-11)
780 x 235 mm (D1 -11)
880 x 255 mm (Al -11)
880 x 235 mm (D1 -11)
980 x 255 mm (Al-11)
980 x 235 mm (D1-11)
Height of center
280 mm
280 mm
280 mm
330 mm
330mm
330mm
380mm
380mm
380mm
Distance between centers
1510 mm
2010mm
3010mm
1510mm
2010mm
F3010mm
1510mm
2010mm
3010mm
Width of bed
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
Spindle bore
105mm
105mm
105mm
105mm
105mm
105mm
105mm
105mm
105mm

For More
Please feel free to Contact Us
