		Vertical Machining Center

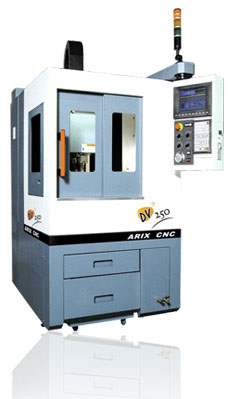

Mini DV250 Series High Speed High Speed Center.

	Powerful cutting capability from build-in BT30 spindle.
	Low noise operation from build-in spindle.
	Designed for mini part. watch parts and jewelry machining.
	The High Speed Center for hardened insert and copper electrodes cutting.
	The Specialized Machine for High Speed Machining in School.

Mini, but Same Functionalities as Machining Centers

10.4” TFT LCO with simple and user-friendly Interface.

Covered Tool Length Setter allows automatic tool length offset by CNC unit.

10.4” TFT LCO with simple and user-friendly Interface.

Covered Tool Length Setter allows automatic tool length offset by CNC unit.

Fully covered ATC protects the tools from chips and dust.

............................................................................................................................................................

Separated Chip pan and tank provides clean and easy chip handling.

Separated Chip pan and tank provides clean and easy chip handling.

DV 250A Spindle Configuration BT30/24,000Rpm/4.6Kw M8 Tapping and Drill up to 10 mm.

DV 250B Spindle Configuration BT30/15,000Rpm/5.5Kw 3D machining and engraving capability.

............................................................................................................................................................


Laser Calibration Laser Calibration done on all the machines after 48 hours run-in keeps DV250 high accuracy.		Ball Bar Test Ball Bar Test and Tuning guarantees the best accurate parts done by DV250.

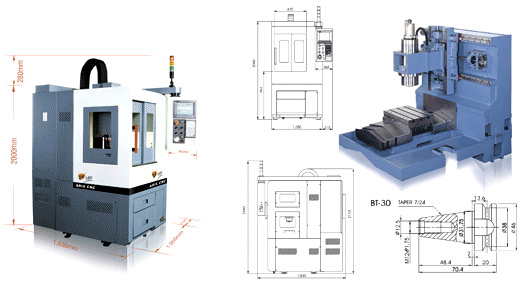

DV 250 Specification

Table	Working Area	210 x 300 mm
Table	T slot	10 mm x 63 mm x 3 mm

Travel	X axis x Y axis x Z axis	250 x 200 x 200 mm
	Center to Column	295 mm
	Nose to Table	125 - 325 mm

ATC	ATC Type	Umbrella
	Tool Number	6 sec
	Max. size D x L	60 x 125 mm

Spindle	Spindle Taper	BT30
	Spindle Speed	15,000 / 24,000 RPM
	Spindle Power	5.5 / 4.6 KW

Transverse	Rapid	15 M/Min
	Feed	10 M/Min
	Servo Motor	X,Y 0.75kw. Z 1kw

Dimension	Dimension W x D x H	1500 x 2000 x 1950 (mm)
Dimension	Weight	1,500 KGS

Standard Accessories

1. Toolbox

2. Automatic lubrication system

3. Full closed cover

4. Work lamp and alarm lamp

Optional Accessories

1. Tool setter

2. Ethernet

3. Hard driver

4. High Speed Machining Funtion
