  Vertical Machining Center






The New Gantry DV series High Speed Centers. Completely Reinvented.



The V series high-speen machining center is a big act to follow. In fact, it's the most successful high- speed centers we ever made. Now we start to create its successor, we did not just refine it, we completely reinvent it as new DV series.

The new DV series is built for rigidity, speed and accuracy. With its well-designed rigid gantry structure, built-in spindle, optional tool setter, forth axis and five axis, and high end PC based controller, it outperforms the existing high-speed centers in performance to cost standard. With its Flexible, extensible and upgradeable PC based controller, it keeps the machine performance most updated and even faster after a decade on field.

The new DV series gives you more in every way: Up to 24,000RPM Built-in spindle, Up to 8GB internal more slots and more ways to connect to external divices using built-in 100Mbps Ethernet, the new DV seeries have been engineered to optimal to take up less space and all can go into container for transportation. The spindle to front distance is reduced to the most accessible that gives the most comfortable operation to load the tooling.



More cost-effective solutions, Better machining quality, Shorter delivery times. Thins goal drives the forward- looking stategy at ARIX. With DV series for achieving competitive advantages can be found for die and mould makers and precision part production. It combines cost-favourable technology with superior quality and powerful controls self-made.

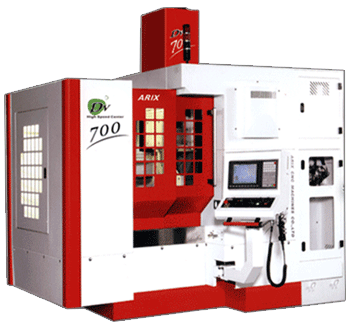

DV 700
Powerful HSM Machine covers wider range cutting
For DV700 development, the optimal structural design, the high speed spindles, the powerful drive mechanism and the advanced control system, all are designed with high speed machining in mind.
The body with a cross shape bed and one piece column makes a rigid and stable machine with better cutting capacity and accuracy.

The most powerful HSM machine. No matter how you cut with.
  Verifying all axis positioning accuracy with the most
  modern laser-interferometer.
  Verifying geometric accuracy with ball bar system.
  Verifying functionality and reliability by a 48-hours run-in
  test.
  Cutting a test piece to check dimensional, geometrical
  and positional accuracy.



Standard armless 16 pockets

The nozzle directs

A ball screw cooling system keeps the temperature constant thus also keeps the thermal stability and superior accuracy.
Standard armless 16 pockets ATC provides a stable and reliable tool changing mechanism.

The nozzle directs coolant precisely at the part and generates strong current to wash away all the fine chips from cutting.

A ball screw cooling system keeps the temperature constant thus also keeps the thermal stability and superior accuracy.
............................................................................................................................................................

For absolute positioning

This unit can remove oils and additives the contaminate coolant and prevent smell. This makes the Coolant life longer and reduces coolant waste.

The ARIX tool
For absolute positioning accuracy request, the only way to ensure the exact position of all axis in spite of environment fluctuation are linear optical scales. With 1-micron resolution, these scales deliver high accuracy for the model making.

This unit can remove oils and additives the contaminate coolant and prevent smell. This makes the Coolant life longer and reduces coolant waste.

The ARIX tool setting system is a full featured, high-resolution hardware. It can do more than just tool setting. With programming, you can perform in-process tool check and call the spare tool (same size as the original tool) to replace the broken tool and continue the operation automatically without any intervention.
............................................................................................................................................................

The nozzle directs coolant

A fully integrated 5th axis table

The high precision 4th axis
The nozzle directs coolant precisely at the part and generates strong current to wash away all the fine chips from cutting.

A fully integrated 5th axis table creates a more diversified capability that boosts more diversified capability that boosts more applications and productivity. With the five axis simultaneous motion can cut the most complicated profile with smooth finish surface.

The high precision 4th axis can provides reliable and accurate rotation.



   DV 700 Specification
Travel
X axis
600 mm
Y axis
700 mm
Z axis
400 mm
Nose to table
100~500 mm
Wide of door
800 mm

Rapid
X / Y / Z
30 M/min

Max Feed
X / Y / Z
20 M/min

Table
Working surface
900 x 650 mm
T solt
18mm / 6mm / 100mm
Load Capacity
800 kg
Height of table
770 mm

ATC
ATC Type
Armless
Tool Number
16

Coolant System
Pump power
1/2HP
tank capacity
220L

Spindle
Max Speed
15000RPM
taper
BT430
motor
11KW
Cooling way
Oil cooler
Center to machine front
2900mm

Tool
Max. tool length
250mm
Max. tool weight
7kg

Motor
Motor of tool magazine
100w
X.Y & Z servomotors
2kw

Other
Air pressure
5~7 kgf/cm2
Air conditioner capacity
500KCal/hr
Spindle cooler
500KCal/hr
Automatic lubricator
55W
Power consumption(Max.)
22.5KVA

Machine
Packing (L x W x H)
275cm x 260cm x 246cm
Net weight
7000 Kgs
Gross weight
7500 Kgs
Standard Accessories
1. Coolant tank
2. Work lamp
3. Toolbox
4. Coolant motor
5. Coolant system
6. Spindle air blow system
7. Chip air blow device
8. Heat exchanger for     cabinet
9. M30 Indication lamp
10. Full enclosed guard
11. Central lubricator
12. Manuals
13. Leveling bolts and pads
14. Armless ATC

Optional Accessories
1. Ethernet
2. 2.1GHard desk
3. 4th axis
4.Rotary table 125mm4. 5th    axis
5. Tool setter
6. Optical scale
7. Dustproof device for     graphite machining
8. Oil and lubricant     separator
9. Oil-mist cooling system
10. Coolant through spindle
11. Thermal compensation       of spindle expansion
12. Siemens controller
   DV 700 Specification
Travel
X axis
600 mm
Y axis
500 mm
Z axis
350 mm
Nose to table
120~480 mm
Wide of door
650 mm

Rapid
X / Y / Z
30/30/24 M/min

Max Feed
X / Y / Z
10 M/min

Table
Working surface
600 x 550 mm
T solt
14mm / 4mm / 100mm
Load Capacity
500 kg
Height of table
770 mm

ATC
ATC Type
Armless
Tool Number
20

Coolant System
Pump power
1/2HP
tank capacity
150L

Spindle
Max Speed
24000RPM
taper
BT30
motor
7.5KW
Cooling way
Oil cooler
Center to machine front
800mm

Tool
Max. tool length
250mm
Max. tool weight
5kg

Motor
Motor of tool magazine
100w
X.Y & Z servomotors
2kw

Other
Air pressure
5~7 kgf/cm2
Air conditioner capacity
500KCal/hr
Spindle cooler
500KCal/hr
Automatic lubricator
55W
Power consumption(Max.)
17.5KVA

Machine
Packing (L x W x H)
218cm x 230cm x 246cm
Net weight
5200 Kgs
Gross weight
5700 Kgs
Standard Accessories
1. Coolant tank
2. Work lamp
3. Toolbox
4. Coolant motor
5. Coolant system
6. Spindle air blow system
7. Chip air blow device
8. Heat exchanger for     cabinet
9. M30 Indication lamp
10. Full enclosed guard
11. Central lubricator
12. Manuals
13. Leveling bolts and pads
14. Armless ATC

Optional Accessories
1. Ethernet
2. 2.1GHard desk
3. 4th axis
4.Rotary table 125mm4. 5th    axis
5. Tool setter
6. Optical scale
7. Dustproof device for     graphite machining
8. Oil and lubricant     separator
9. Oil-mist cooling system
10. Coolant through spindle
11. Thermal compensation       of spindle expansion
12. Siemens controller
