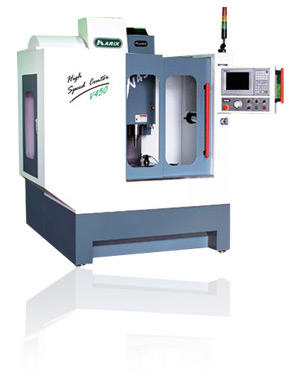

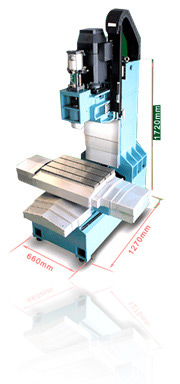

V 450 MINI HIGH SPEED MACHINING CENTER

Closed and sealead casting with damping sand inside can absorb all the vibration from high speed machining. The heavy machine design can bear the high acceleration and deceleration without vibration. Both result in smooth and fine surface on complicate 3D profile


All three-axis use linear motion guides XY25mm/ Z 32mm that generate more smooth motion under lower friction.		The design of fully support linear motion guide reduces the gravity deformation during mechanical movement to a minimum		Closed box designed base with three points supports provides high rigidity and accuracy foundation

Better protection to transmission system and more effective for getting rid of cutting chips while using 3-Axis telescope covers.

Standard armless 10 tools ATC provides a stable and reliable tool chaging mechanism.

Laser Calibration Instruments is used on every machine before delivery to customers to guarantee the positioning accuracy after a minimum of 48 hours dry running.

............................................................................................................................................................

Faster tools changing mechanism suitable for parts machining.

ARIX CNC can provide a Ball Bar Testing to replace actual circular cutting Test to adjust the relevant electrical parameters

Faster tools changing mechanism suitable for parts machining.

With the high rigidity and high precison of 4th axis rotary table can provides stable and reliable rotation and index acc accuracy.

............................................................................................................................................................

Covered Tool Length setter allows automatic tool lenght offset by CNC unit.

The simultancous motion of 5 Axis provides universal machining applications.

BT30-12000RPM/
BT30-24000RPM
BT40-8000RPM/
BT40-12000RPM

Covered Tool Length setter allows automatic tool lenght offset by CNC unit.

............................................................................................................................................................

"Renishew" Tool Lenght setter can measure and offset the tool lenght and radius even though the tool is rotating.

spindle oil Cooler Keeps the operating temerature constant and prolongs spindle's life/ accuracy and etc.

V 450 Specification

Table	Working surface	355 x 610 mm
	T slot	14 mm x 100 x 3
	MaximumTable Loads	150 KGS

Travel	Stroke(X x X x Z )	450 x 350 x 350 mm (Z 410mm)
	Center to Column	410 mm
	Nose to Table	160 - 560 mm

Spindle	Spindle Nose	BT30 (BT40)
	Spindle Speed	10,000 RPM (8,000/12,000/24,000 RPM)
	Spindle Horse Power	5 HP (7.5 HP )

Transverse	Rapid X,Y axis	20 M/Min
	Rapid Z	10 M/Min (20 M/Min )
	Feed Rate	10 M/Min
	Servo motor horsepower	1 KW (2 KW )

Accuracy	Positioning accuracy	+ / -5um
Accuracy	Repeatability	2um

Machine	Dimension W x D x H	1500 x 2000 x 1950
	Weight	2800 KGS
	Power Source	15 KVA

Standard Accessories

1. Toolbox

2. Automatic lubrication system

3. Full close cover

4. Work lamp and alarm lamp

Optional Accessories

1. Rigid Tapping

2. BT40 - 12,000 RPM

3. BT30 - 24,000 RPM

4. Rotary table 125mm

5. Arm Type 20/16 tools ATC

6. Hard driver

7. Ethernet

8. Five axis table 125mm

9. Coolant Through Spindle device

10.Tool Length Setter.
