V 800 THE HIGH SPEED MOULD MAKING CENTER.

.Double efficiency high speed machining center .

v 800
Full close cover and telescope
Full close cover and telescope.
....................................................................................
10.4” TFT LCD monitor
10.4” TFT LCD monitor.
....................................................................................
Spindle oil cooling system
Spindle oil cooling system.
....................................................................................
Oil and coolant separate recovery system
Oil and coolant separate recovery system.

v 800-1

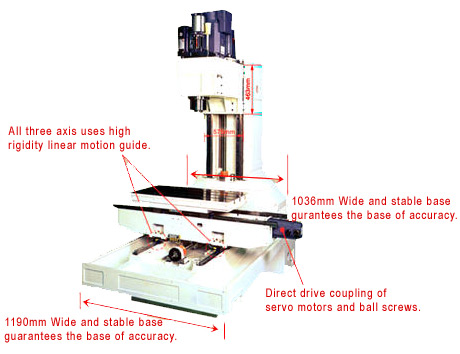

  The robust machine body integrates
  the HSM controller provide the best finish part.
  Thanks to the HSM to make same day
  delivery possible for the sub-contract machining.
  Built-in cooling system for the spindle
  unit to reduce the thermal deformation.
  Teach-in functions get the operation
  user-friendly and save the programming time.

   DV 800 Specification
Table
Working surface
500 x 910 mm
T slot
3 mm x 18 x 125
MaximumTable Loads
 500 KGS

Travel
X axis x Y axis x Z axis
 800 x 500 x 5400 mm
Center to Column
 534 mm
Nose to Table
 150 - 690 mm

Spindle
Spindle Nose
BT40
Spindle Speed
10,000 RPM
Spindle Horse Power
 7.5 KW

Transverse
Rapid X,Y axis
 15 M/Min
Rapid Z
 10 M/Min
Feed Rate
 10 M/Min
Servo motor horsepower
 X,Y 1 KW ; Z 2 KW

Machine
Dimension W x D x H
 2100 x 2366 x 2477
Weight
 5000 KGS
Power Source
20 KVA
Standard Accessories
1. Toolbox
2. Automatic lubrication system
3. Operation manual
4. Full close cover

Optional Accessories
1. Rigid Tapping
2. Forth Axis rotary table
3. 20/16 arm type ATC
4. High driver
5. Ethernet
6. high speed and high accuracy     function
